The Orbea Terra is a new model from the Spanish bike manufacturer that promises bikepacking prowess through mounting points, larger tire clearance, inner-frame storage, and tweaked geometry for fully loaded adventures. Find details here…

The Orbea Terra is one of two new models from the Spanish bike company that promises a slightly more race-oriented approach. With mounting points on the fork leg, top tube, down tube, seat tube, and fender mounts, it’s an aggressive carbon gravel bike with all the modern accouterments to accommodate light bikepacking bags. New additions to their Terra line of bikes also include clearance for up to 700 x 50mm tires, tweaked geometry that is supposedly more suitable for quick, confident handling characteristics, and a longer wheelbase for greater stability when things get rough.

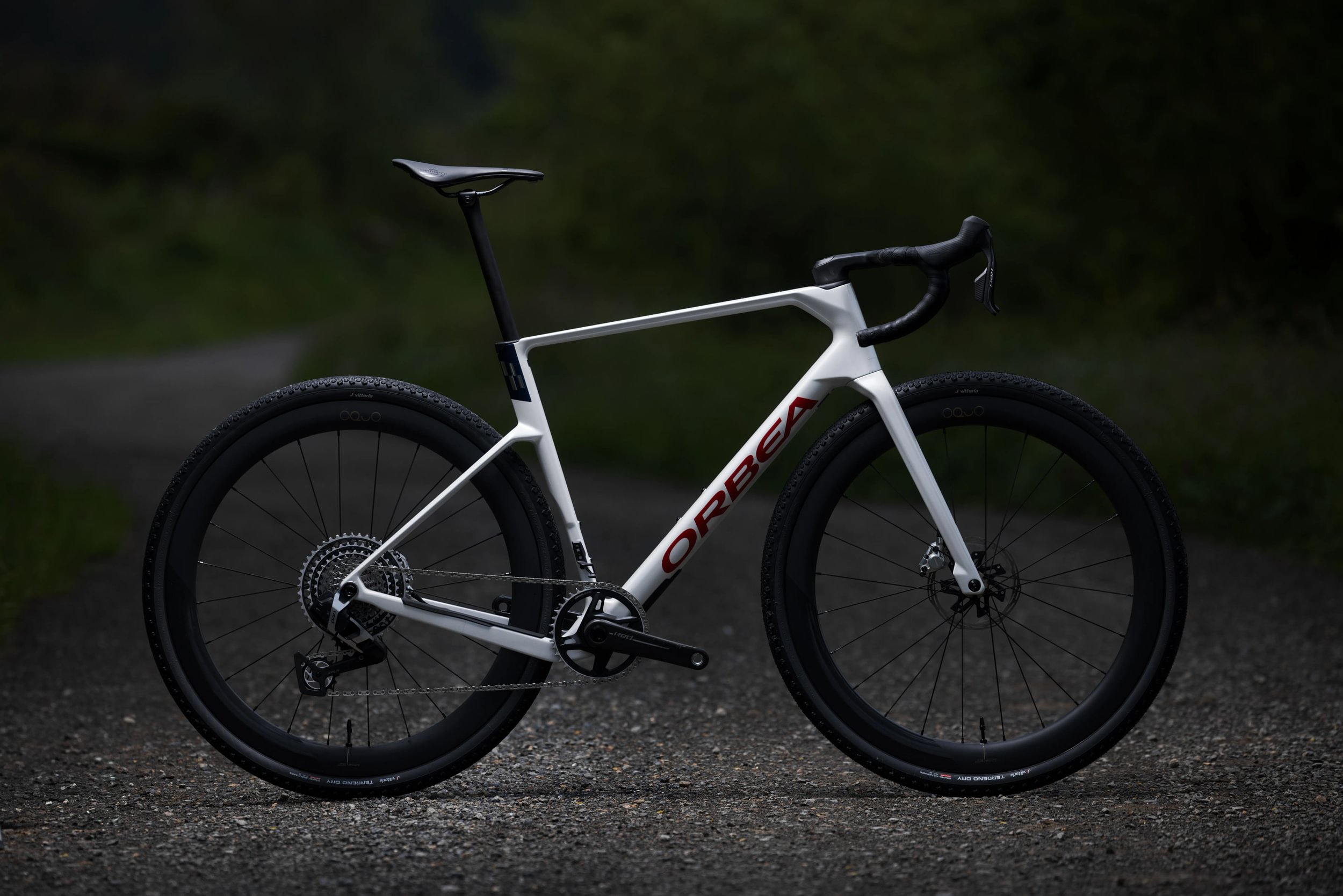

Orbea Terra

Orbea has also expanded the capacity of their downtube storage on the new Terra models, as this inner frame storage system—the LOCKR XXL—has 35 percent more volume than prior iterations and provides internal space for tools, snacks, or spare layers. The most affordable build, the TERRA M30TEAM 1X, costs $3,000 and features Shimano GRX, alloy wheels, and a carbon frame. The top-end model is equipped with SRAM Force AXS and costs $6,300.

Orbea Terra Geo

Size XS SM MD LG XL XXL
Effective TT Length 535 547 561 573 585 596
Reach 386 392 400 406 412 417
Wheelbase 1031 1041 1052 1061 1072 1081
CS Length 430 430 430 430 430 430
Effective ST Angle 74 74 74 74 74 74
ST Length 410 440 470 505 540 575
HT Angle 68 68 68 68 68 68
HT Length 110 132.5 153.5 175 198 218
Fork Length 495 495 495 495 495 495
BB Drop 80 80 80 80 80 80
Stack 535 558 580 602 625 645
Rider Height (CM) 155-166 167-172 173-179 180-185 186-191 192-207

In addition to the release of the Orbea Terra comes the Orbea Terra Race. More focused on weight savings than mounting points, the Orbea Terra Race is a steeper, more aggressive carbon gravel bike with less capacity for storage and bikepacking equipment. At just 910 grams for the frame, it’s a full 300 grams lighter than prior iterations. It also has less tire clearance, as it takes a step down from the Orbea Terra with a maximum stated clearance of just 700 x 45mm. Both models are fully UDH compatible and have a variety of customization options for complete models through Orbea. The Orbea Terra Race completes start at $5,200 USD, with the top-of-the-line SRAM RED AXS model going for $10,500 USD.

Orbea Terra

Orbea Terra Race Geo

Size XS SM MD LG XL XXL
Effective TT Length 523 538 555 567 585 600
Reach 375 383 389 395 402 409
Wheelbase 1005 1018 1026 1040 1048 1058
CS Length 420 420 420 420 420 420
Effective ST Angle 74 74 74 74 74 74
ST Length 405 440 470 505 540 575
HT Angle 70 70.5 71 71 71.5 72
HT Length 95 120 139 162 181 205
Fork Length 390 390 390 390 390 390
BB Drop 78 78 78 78 78 78
Stack 514.9 540 560.3 580 600 625
Rider Height (CM) 155-166 167-172 173-179 180-185 186-191 192-207

For more on the new Orbea Terra, visit Orbea.com.
